Non-contact measurement within industry 4.0

STIL SYSTEMS

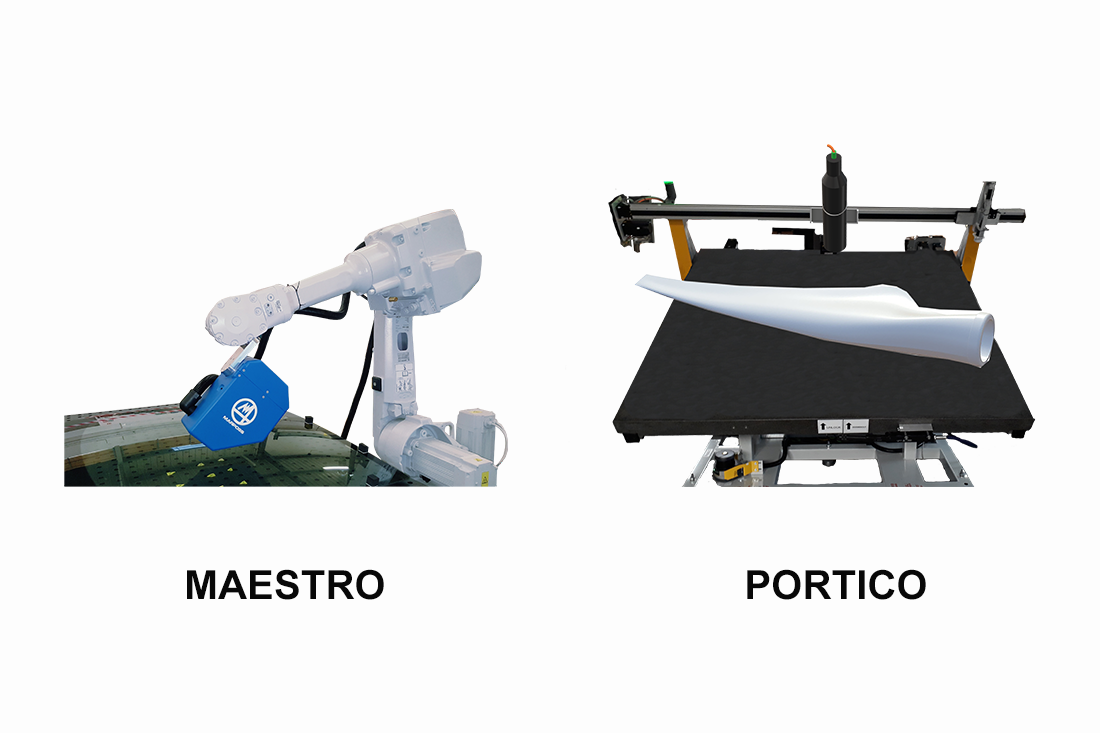

STIL PORTICO3D and MAESTRO3D are measurement systems designed to achieve true 3D metrology of each point for the most demanding applications adapted to Industry 4.0 standards.

The measurement range of the sensor heads starts at 150 μm and goes up to 30 mm, giving different scales of analysis and allowing a wide range of characterizations.

The unique time measurement mode allows the analysis of dynamic phenomena using the measurement of a single point, line or surface with a predefined time as parameter.

STIL Systems are dedicated tools for non-contact surface measurement, including 3D ISO25178-602 roughness, shape metrology, 3D microtopography and thickness measurement of transparent layers.

Non contact measure within industry 4.0 stil systems
DESCRIPTION

STIL Systems series is made of different models, each one dedicated to one or several applications, in industrial and laboratory environments, 24/7.

Combined with the wide range of STIL point probe heads, they offer excellent metrological performances, both on and off-line.

Flexible, easy to use and respectful of environmental constraints, STIL systems are standard or customized to meet non-contact measurement and defect control needs in short cycle times: from 4 seconds to measure a car glass or a complete smartphone.

STIL Systems solutions are used in multiple application contexts and on any type of surface reflectivity, whether transparent or opaque, shiny or diffuse.

BENEFITS
  • Versatile: measures any material capable of reflecting white light (e.g. metal, glass, plastic, paint films, liquids)
  • Non-contact measurement is suitable in all cases where it is necessary to measure without touching the target
  • High measurement accuracy
  • Interchangeable STIL optical heads: CL-MG / OP / ENDO / EVEREST series
  • Dedicated to industrial environment, independent from ambient light
APPLICATIONS

The chromatic confocal technology of STIL Systems is suitable for a variety of applications in many fields:

  • Automotive glass
  • Glass containers and packaging industry
  • Electrical vehicle industry (batteries)
  • Applications for measuring roll-to-roll, transparent and non-transparent films (e.g. EV battery covers, flexible electronics)
  • Electronics Industry (PCB)
  • Semiconductor industry (silicon wafer)
  • CCC industry
  • Medical & microfluidic
  • Micromechanics
  • Aviation/Aerospace
  • Watchmaking
  • Robotics
VERSIONS

MAESTRO3D is available with one or more simultaneous measurement channels.

PORTICO3D is a Cartesian robot with three to five axes.

Dimensions of PORTICO3D: 300 x 300 x 100 mm to 2000 x 2000 x 500 mm.
