Industrial Gauging Computers

Marposs offers hardware and software for data collection and analysis, industrial control, production and factory automation.

  • Industrial Computers (embedded computers, panel PC and workstations) for data processing and control
  • Data acquisition systems: interface boxes to connect analog and digital sensors to an industrial PC for data processing
  • Application software to easily create distributed shop-floor data acquisition systems for Statistical Process and Quality control (SPC)
Industrial Gauging Computers
DESCRIPTION

Industrial and embedded computers are used for measurement processing and control.

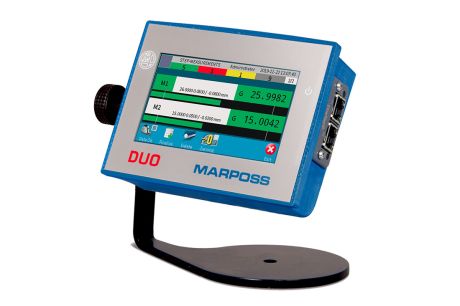

ULTRA COMPACT EMBEDDED GAUGE COMPUTER

Extremely compact and powerful, 4.3’’ true flat touch screen unit for display and storage of measuring data acquired from bore, snap and ring gauges. Duo™ can connect one or two probes or gauges, and is the best choice for simple manual applications allowing up to two measurements to be simultaneously displayed. Duo guarantees premium features at an affordable price being as small as a smartphone.


COMPACT EMBEDDED GAUGE COMPUTER

Nemo™ is an entry-level, compact gauging computer, ideal for data collection applications and suitable for analyzing and monitoring industrial production.

It is a perfect, user friendly solution for manual applications involving small numbers of measurement points and it is capable of supporting complex mathematical formulas, sub-dividing into production batches and collecting data via a company network.

It is supplied with a user interface that makes use of easy-to-read icons and is compatible with the reduced dimensions of the computer itself. In addition the system configuration is based on self-identification on the part of the connected devices.

Nemo™ may also be used to export files containing the data from an entire production batch or a single measurement cycle to a company network



EMBEDDED GAUGE COMPUTER

Merlin™ is the benchmark product in the gauge computer sector and represents a tried and trusted solution when collecting data used to optimise industrial production analysis and monitoring processes.

Based on a Windows embedded operating system, Merlin™ forms the basis of a range of compact, easy-to-use devices that are ideal for use in manual gauging applications. It is capable of executing SPC checks, with in line Cp and Cpk calculation, complete with histograms and control charts. It can be used to manage several production batches and users, and includes multi-lingual support.

Merlin Plus™ is the hardware and software comprehensive answer to collect measure data with the purpose of optimizing industrial production analysis and control as it combines high performance and ease of use, thus appearing perfectly suited to manage applications and small manual measure benches.

Running on Windows 10 IoT, its software design ensures all users the maximum ease of use for industrial measure manual applications. Customized pages can be easily created to develop a guided sequences that will drive operator step by step to avoid any errors while running measure cycles.

Merlin Plus™ is proposed in its compact, 12”, true-flat industrial version and in the Merlin Plus Box™ version that is connectable to up to 4 various dimension screens, each one possibly showing a different customized page during measure cycles.

EMBEDDED INDUSTRIAL PC FOR DATA ACQUISITION SYSTEMS

The E9066E™ and E9066E-bb™ family of Embedded Industustrial Computers are diskless and totally fanless computer systems, provided in sealed, compact and shop-floor proof enclosures.

Based on the INTEL® industrial-grade embedded platforms, these systems provide the endurance and reliability needed to meet any shop-floor requirement.

Both run on MICROSOFT® WINDOWS®10-IoT and the Marposs Quick SPC™ Measurement, SPC and Quality Control software suite, and connect to Marposs Easy Box™ , GagePod™ and other data acquisition systems, providing an efficient and cost-effective solution for Data Collection, Industrial Control and Production/Factory Automation.

INDUSTRIAL PANEL PC FOR DATA ACQUISITION SYSTEMS

The E9066T™  Panel PC is an industrial computer that provides applications with a host of built-in features for Data Collection, Industrial Control, Production and Factory Automation. Its industrial-grade design can withstand the abuse of severe shop floor environments, while complying with international standards for EMC, safety and noise immunity. But the  E9066T is not only an industry standard computer. When bundled with the Marposs Quick SPC Measurement and SPC software suite and Marposs GagePod™ data acquisition system, it offers unparalleled performance for real-time data acquisition and measuring applications, industrial process control, real-time SPC and closed-loop machine tool control.

The E9066T runs on MICROSOFT® WINDOWS®10-IoT and the Marposs Quick SPC™ Measurement, SPC and Quality Control software suite, and connect to Marposs Easy Box™ , GagePod™ and other data acquisition systems, providing an efficient and cost-effective solution for Data Collection, Industrial Control and Production/Factory Automation.

Specifically designed to satisfy space-constricted applications without compromising features and functionalities of a complete industrial PC, the E9066T is suitable for bench-top, panel mount, wall-mount and swing-arm solutions alike.

From simple, manual gauging to complex automatic gauging applications, its scalable hardware and open connectivity provide a cost-effective solution for any need.

E9066T represents a truly innovative family of modular and reliable industrial computers for Data Collection, Industrial Control and Production/Factory Automation.

To know more read the article about Gauging Solutions.
