Laser System for Through-feed, Single Diameter Measuring and Grinder Regulation

GRINDLINE

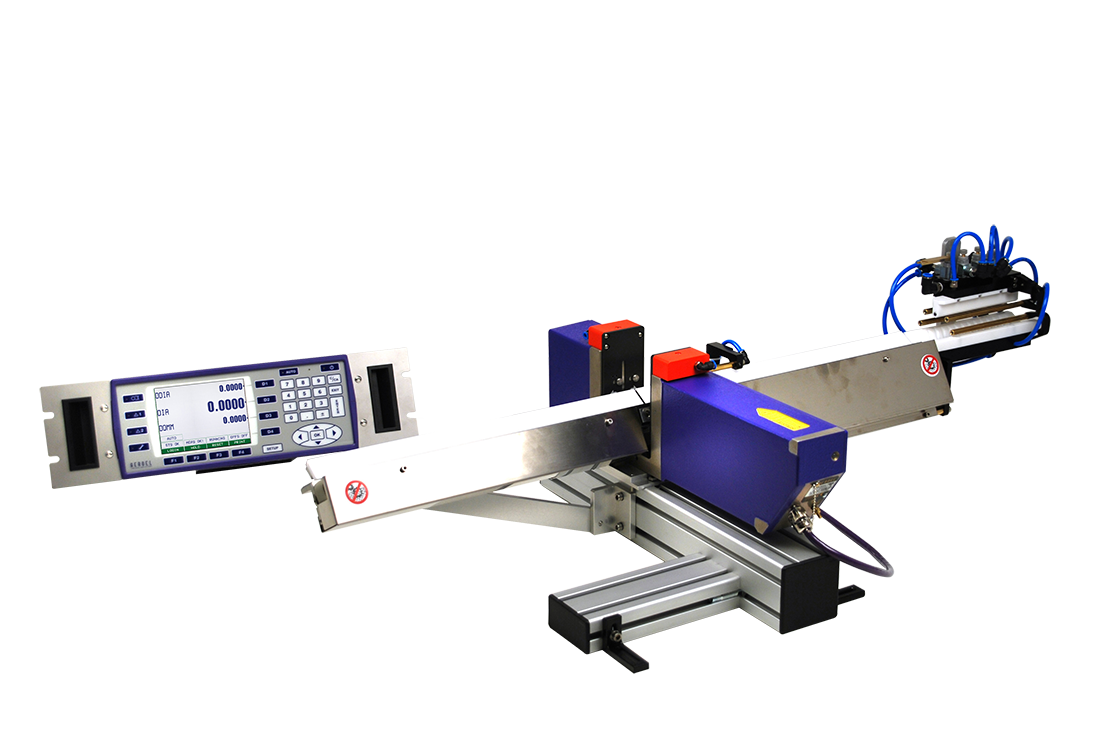

The Grindline.X Laser System has been specially designed for on-line gauging of the outside diameter of products manufactured by through-feed centreless grinding machines, like pins, shock absorbers rods, steering racks or any other part having one ground diameter only to be checked.

Laser System for Through-feed, Single Diameter Measuring and Grinder Regulation
DESCRIPTION

The main functions of the system are through-feed measurement and display of the ground diameter, tolerance checking and output alarms for part sorting, real-time grinder regulation, processing and printing of statistical reports, interface with remote computer, NO-VAR technology: no measuring drift due to changing room temperature.

BENEFITS
  • Zero-defect production: the 100% inspection allows out-oftolerance parts to be detected and discarded, avoiding any risk of rejects or later complaints
  • Excellent flexibility: thanks to its wide measuring range and to the exclusive data processing software, the system enables gauging a number of parts with different shape and dimensions without specific dedication
  • Through-feed capability: the non-contact operating principle enables 100% inspection without having to stop the component
  • High gauging speed: getting an excellent repeatability in a short measuring time makes the on-line application consistent with high production rates
  • High precision: a patented self-calibration device guarantees permanent gauge accuracy with no re-mastering required
  • Insensitive to ambient temperature changes: the selfcalibration device automatically compensates any drift due to room temperature changes, making the gauge ideal for use in the workshop
  • Turnkey solutions: Aeroel supplies a wide range of accessories for cleaning and moving the part, assuring a high overall system performance
  • Competitive price: the through-feed gauging doesn’t involve complicated and costly handling devices, making the cost/ benefits ratio even more favourable
  • Reliability and long life: the optical gauging avoids all wearing and adjusting problems associated with touch probes; the solid state laser source warrants long operational life
  • Labour savings: the unsupervised automatic control makes lighter work for the grinder operating staff
  • Quality certification made easier: the on-line gauging makes random sample checks redundant and allows the printing of detailed reports to prove Product Quality and Process Capability
  • Excellent flexibility: thanks to its wide measuring range and to the exclusive data processing software, the system enables gauging a number of parts with different shape and dimensions without specific dedication
  • Through-feed capability: the non-contact operating principle enables 100% inspection without having to stop the component
  • High gauging speed: getting an excellent repeatability in a short measuring time makes the on-line application consistent with high production rates
  • High precision: a patented self-calibration device guarantees permanent gauge accuracy with no re-mastering required
  • Insensitive to ambient temperature changes: the selfcalibration device automatically compensates any drift due to room temperature changes, making the gauge ideal for use in the workshop
  • Turnkey solutions: Aeroel supplies a wide range of accessories for cleaning and moving the part, assuring a high overall system performance
  • Competitive price: the through-feed gauging doesn’t involve complicated and costly handling devices, making the cost/ benefits ratio even more favourable
  • Reliability and long life: the optical gauging avoids all wearing and adjusting problems associated with touch probes; the solid state laser source warrants long operational life
VERSIONS

GRINDLINE.X40

  • Measuring Field: 40 mm
  • Measurable Diameters: from 0.06 to 38 mm
  • Repeatability: ± 0.1 µm

GRINDLINE.X80

  • Measuring Field: 80 mm
  • Measurable Diameters: from 0.75 to 78 mm
  • Repeatability: ± 0.3 µm
