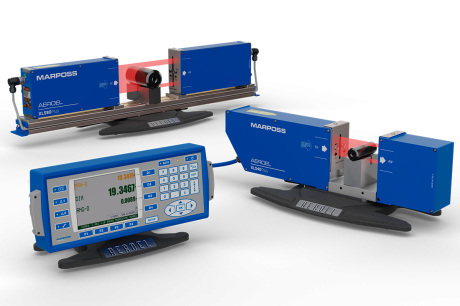

It is ideal for the off-line, manual measurements of a wide range of ground or turned parts with different shapes and sizes, such as electric motor shafts, ground or turned parts, gage pins, piston pins, hydraulic components.
NO-VAR technology: no measuring drift due to changing room temperature.
Through-feed measurement: multi-diameter measurement simple and instantaneous.
BENEFITS
No error due to the hysteresis (inversion error) which is typical of all dial indicator gauges
Contactless measurement: no part damage or scratches
Objective and highly reproducible results: no matter about the operator’s skill
Extremely easy and quick to use: reduces inspection time and improves measurement capability
Highly flexible: different components and sizes can be measured without gauge re-mastering
Ultra accurate: it measures to an accuracy that before you had only in a metrology room, using time consuming, expensive equipment and specialized personnel
Fine measuring spot: you can measure details that would be otherwise impossible to detect
No measuring drift due to changing room temperature!
Through-feed measurement
VERSIONS
Available Super-Meclab Systems
SUPER-MECLAB.X40
Measuring Field: 40 mm Measurable Diameters: from 0.6 to 38 mm Repeatability: up to ± 0.1 µm
SUPER-MECLAB.X80
Measuring Field: 80 mm Measurable Diameters: from 0.75 to 78 mm Repeatability:up to ± 0.3 µm
