Optical Gauge For Hairpin

The increasing demand for compact and high-performance electric motors for the automotive industry, poses the problem of motors with high specific energy and reduced overall dimensions. The problem has been solved by several car manufacturers, using stator winding made by hairpin.

The most important challenge is to realize the single hairpins so that they can best fill the stator grooves. This implies the need to precisely control the dimensions of these light and deformable components. Using a non-contact system, the actual measurement of the component can be obtained without any distortion introduced by touch probe gauging systems or reference jigs.

Optical Gauge For Hairpin
DESCRIPTION

Whatever the technology adopted for the production of hairpins, with die bending or CNC machines, these are normally processes characterized by slow trends, which are well suited to being controlled by off-line sample measurement.

On the other hand, since these are easily deformable components, it is absolutely necessary to adopt accurate, but contactless, measurement technologies that allow for the exact measurement of dimensions, geometry and shape of the hairpins in the conditions in which they will be in the subsequent assembly phases.

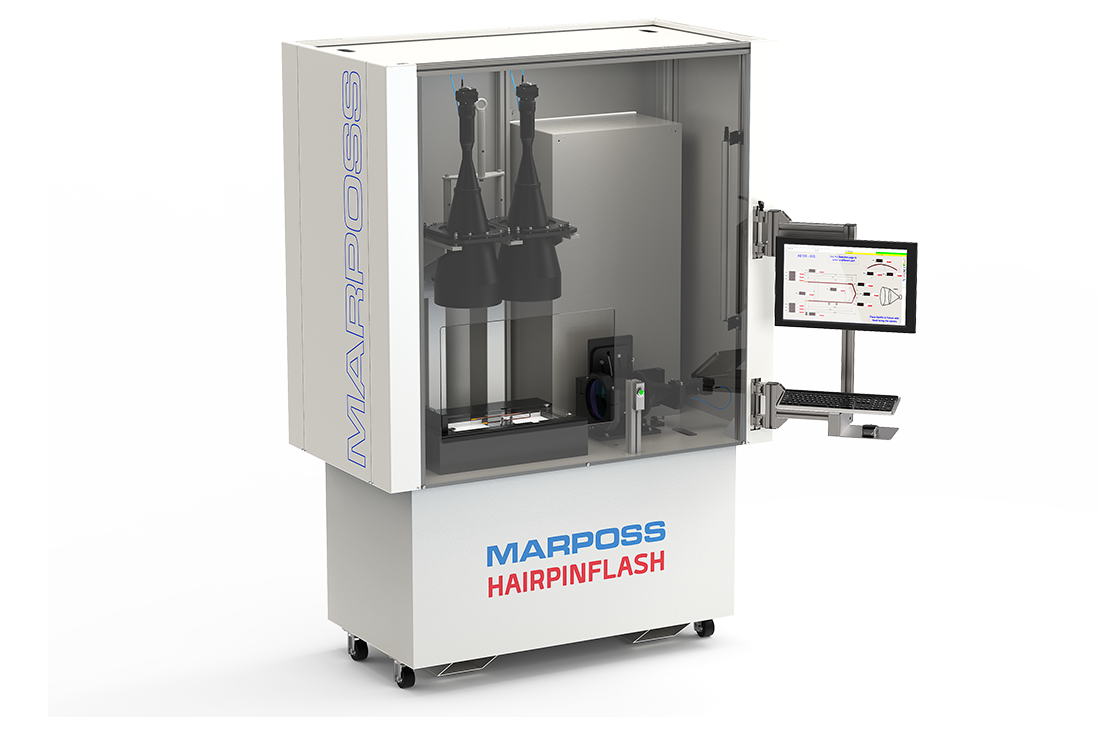

The proposed solution, is an optical measuring system, able to perform the dimensional verification of the main geometric characteristics of the hairpin. Using three high resolution cameras the most important sections of the component are measured with the aim to keep under control lengths, widths and bendings to avoid problems during the stator assembly.

Thanks to the accurate calibration procedure of the cameras, the system is able to measure with maximum precision in a few seconds the main geometric and dimensional features of the hairpins.

  • Length of the hairpin legs
  • Length of the stripped sections
  • Width of the hairpin (distance between legs) in several sections
  • Bend angles
  • Twist angle
  • Dimensions of the roof-top
  • Skip bending
  • Profile evaluation
optical-gauge

The system guarantees maximum flexibility for measuring the different types of hairpins that need to be assembled in the stator, without the need for any mechanical retooling but simply by selecting the dedicated control plan.

BENEFITS
  • Contactless measuring technology
  • Fast (cycle time < 5 sec)
  • Flexible for different part type
  • Virtually maintenance free
VERSIONS
TECH SPECS
  • 3 x 20 Mpxl monocromatic camera
  • High contrast and low distorsion telecentric lens
  • Lighting: Green light source for optimal contrast with reddish hairpins, regardless of coating (PA, PAI, PEEK)
  • Field of view 430 x 130 x 35 (including a 90 mm blind area)
