Touch probe system with ultra wideband transmission technology

MUPS

Marposs Ultra Probing System (MUPS) is an innovative, wireless touch probe designed for use with cutting machine tools. It optimizes the machining process through precise part positioning and  tool checking.

Thanks to Ultra-Wideband (UWB) technology, the MUPS system guarantees reliable communication and complete immunity from interference, ensuring the highest quality control and machining accuracy standards.

Ultra probing system
DESCRIPTION

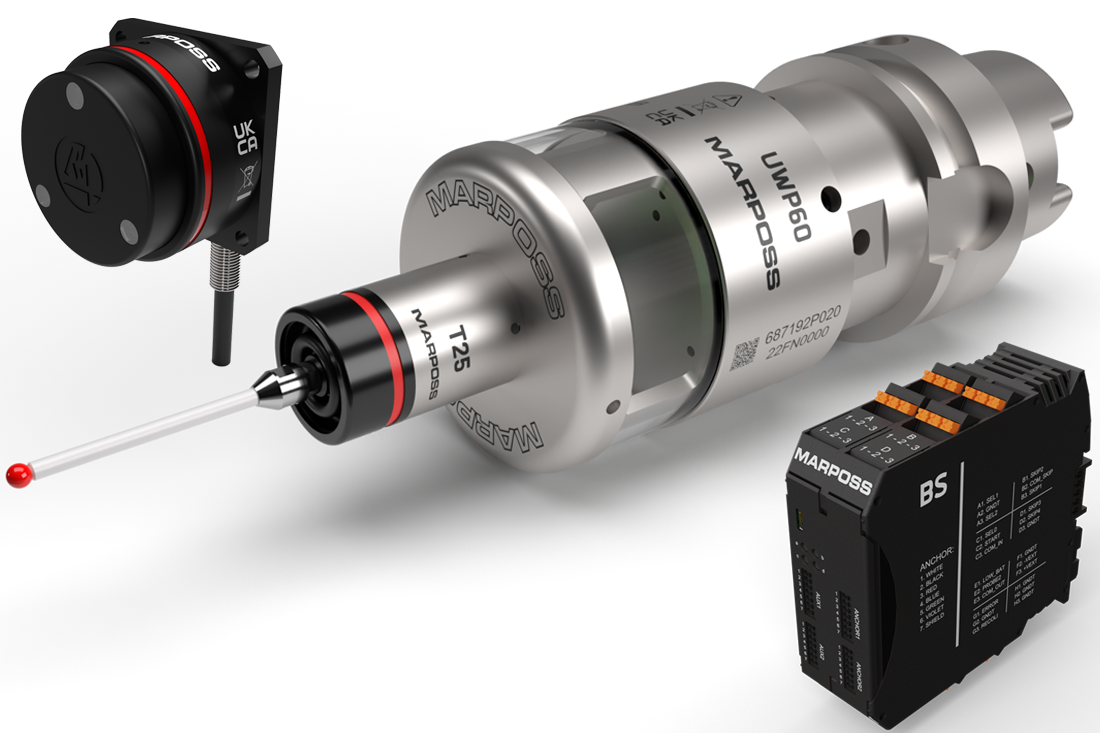

MUPS is a wireless touch probing system composed of a transmitter (UWP), an antenna receiver (ANCHOR) using Ultra-Wideband radio transmission technology, and a machine cabinet interface (BASE STATION).


This architecture ensures maximum immunity to interference and reliable signal transmission.
Thanks to its compact design and next-generation wireless connector, MUPS guarantees robustness even in the most challenging machine conditions.
Key features include multichannel management of up to 8 probes, double spindle applications with two probes on one receiver, and twin functionality for checking both workpiece and tool with the same receiver.


BENEFITS
  • Lower scrap rates and immediate cost savings
  • Automatic management of multiple probes within the same plant
  • Complete immunity to interference from WiFi, Bluetooth, and 4G/5G networks
  • Robust design built to withstand the most demanding machining conditions
  • Extended battery life for longer operating autonomy
  • Fast and simple setup with the dedicated MUPS App
COMPONENTS

Models Available

UWP45 Touch Probe

  • Diameter: 45 mm
  • Ideal for multi-axis milling machines and machining centres
  • Combines compact size with UWB wireless transmission
  • Compatible with Marposs T25, TT25, TT30, and T25P probes

UWP60 Touch Probe

  • Diameter: 60 mm
  • Suitable for large workstations and vertical lathes
  • Extremely robust design with extended operating autonomy
  • Configurable with Marposs T25, TT25, T25P probes and extensions up to 1 m

Anchor, Base Station and MUPS App

  • ANCHOR Antenna Receiver
    Ultra-compact design for simple installation with 3 LED indicators for status monitoring.
  • BASE STATION Interface
    The machine cabinet interface that completes the MUPS system.
  • MUPS App
    Available for Windows, Android, and iOS, the app enables fast setup and real-time monitoring of system status.
Video
Please accept marketing-cookies to watch this video.
Download

BROCHURES AND MANUALS

Brochure Flyer Installation Manual Programming Manual
English MUPS: (2.96MB)
MUPS: (676.97kB)
MUPS: (11.65MB)
MUPS: (4.66MB)
Italian - - MUPS: (11.60MB)
MUPS: (4.64MB)
Japanese - MUPS: (715.49kB)
- -
Korean - MUPS: (665.97kB)
- -

Related applications

Part Probing on Machining Center Details

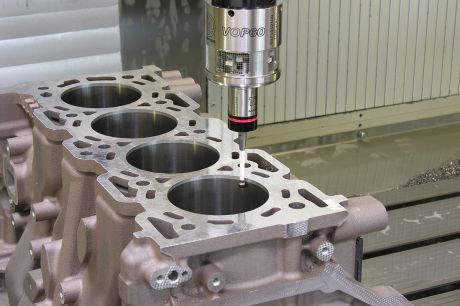

Part Probing on Machining Center

One of the main issues in the production area using milling machines and machining centers is caused by scrap parts due to wrong machining. One of ...

Part Probing on Tool Grinders and Gear Grinders Details

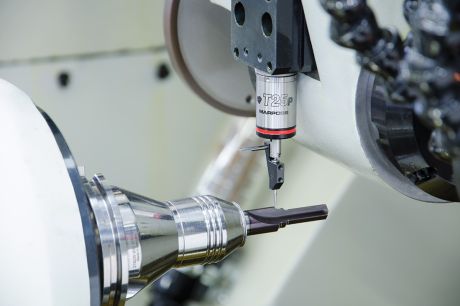

Part Probing on Tool Grinders and Gear Grinders

Monitoring part machining process on gear wheel grinders and sharpeners has always been a particularly exacting operation, since such components ty...
