Wire Industry

The on-line diameter measurement is performing a very important role even in the manufacturing process of a product seemingly so simple as metal wire, especially because nowadays specifications are getting tighter and tighter and more and more difficult to achieve. Aeroel has developed dedicated laser systems for real time diameter and ovality measurement, offering to wire drawers effective instruments to enhance the process efficiency and the wire quality.

Why Lasers? Laser technology allows the wire to be gauged just after the die or before the coiling, during the drawing process. Indeed, only by using laser light it has become possible to design diameter gauges which are insensitive to wire vibration and movement, featuring in addition the extremely high precision which is necessary to check very narrow tolerance limits.

Wire Industry
APPLICATIONS

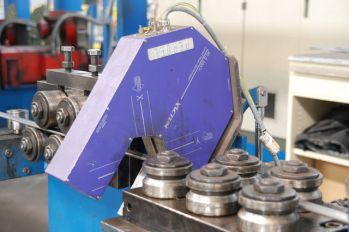

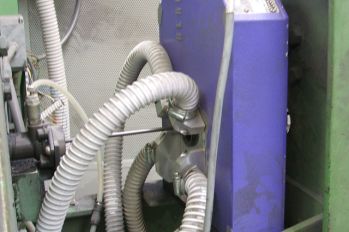

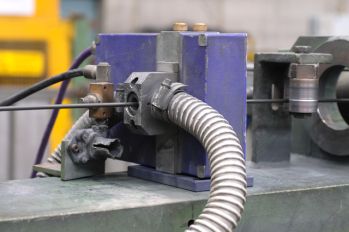

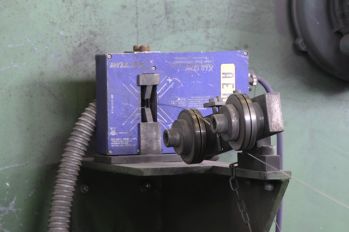

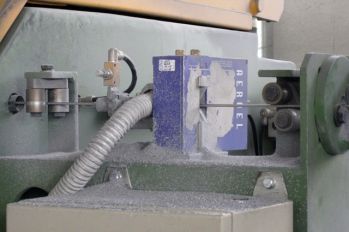

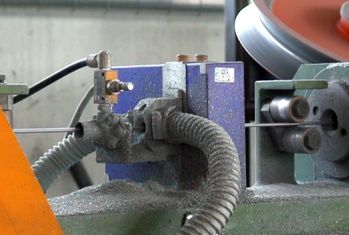

By detecting increasing wire diameter or excessive ovality, the laser gauge constantly monitors the wearing condition of the die. When the wire diameter exceeds the preset tolerance limits, the machine can be immediately stopped. The measured data is recorded and processed to print complete statistical reports for each spool. In addition, the gauges can be linked to an external computer to allow remote system programming and data downloading for further analisys and storage. Several system configurations are offered, to fit both wet or dry drawing machines, single or multiple line, processing ferrous or non-ferrous wire.

AEROEL-wire-35xy  AEROEL-wire-13xy AEROEL-wire-13xy
