The effective solution for the in-line measurement of products featuring rectangular cross section

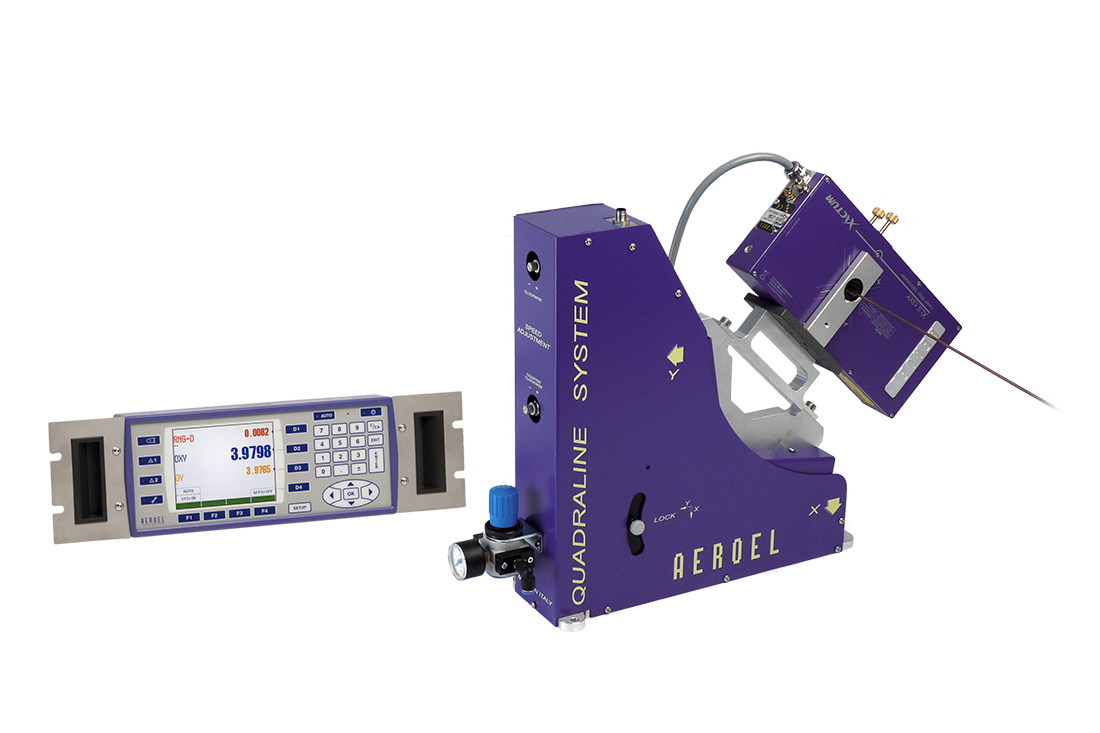

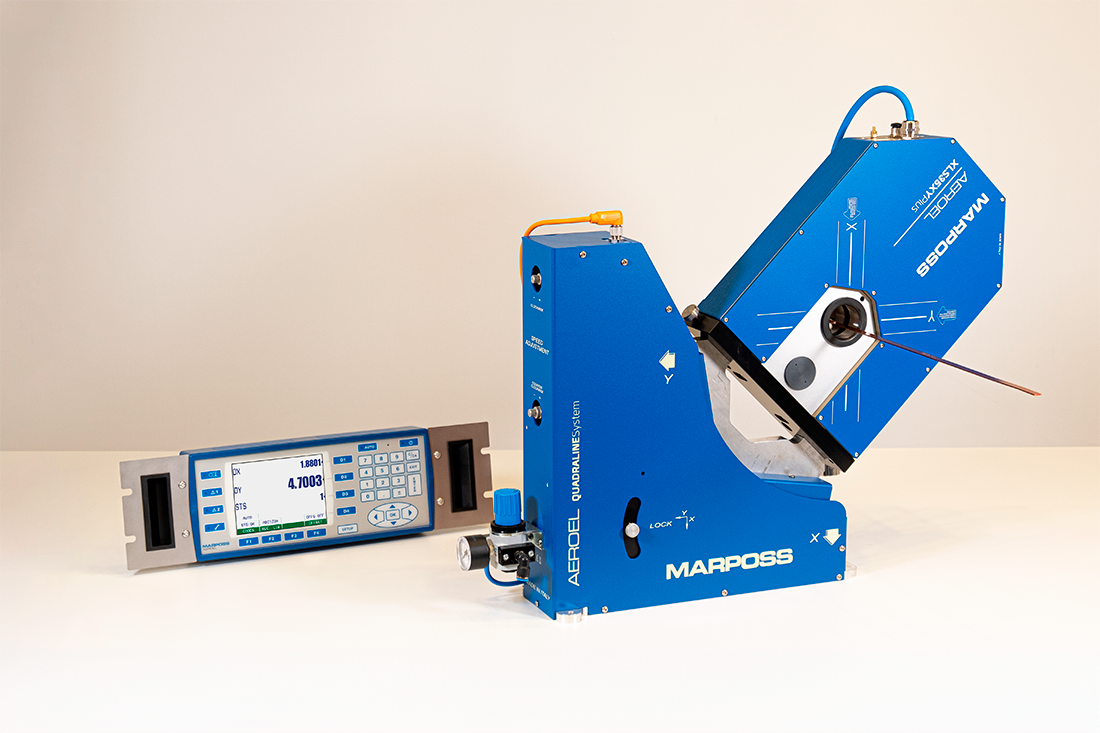

QUADRALINE.XY

QUADRALINE.XY is a Laser System designed for the in-line control of the two dimensions of extruded or rolled products featuring rectangle-like cross section. Due to its special features, Quadraline guarantees reliable and accurate measurements without the need for a tight alignment and tolerates product vibration and twisting.

The effective solution for the in-line measurement of products featuring rectangular cross section
DESCRIPTION

The QUADRALINE Laser System has been specially designed for on-line monitoring of the two dimensions of rolled or extruded products having a rectangular cross section, such as, flat wire for hairpin, metal sections, plastic extruded sections, superconducting wire; enameled straps ...

  • It measures dimensions from 0.1 mm to 30 mm, using crossed beams, dual axis laser gauges.
  • It checks the product tolerance and alerts the operator when the shift from nominal dimensions exceeds the pre-set limits
  • It performs automatic process regulation, keeping the product within the tolerance limits throughout production
  • Detailed statistical reports are processed and printed for each manufacturing batch
  • It can be easily connected to a Computer to download measured data or to allow remote system programming
BENEFITS
  • No scrap: the real time inspection allows the system to detect out-of-tolerance trends and return the product back within specification, avoiding any risk of rejects or complaints
  • Saving in materials: by keeping the product close to the lowest tolerance limit, considerable savings in materials can be achieved, thus allowing the cost of the system to be paid back in just a few months
  • Labour savings: the reliable and effective automatic control means the task of the extruder operator is made lighter
  • Quality Certification: the 100% inspection makes random sample checks redundant and allows the printing of detailed reports to prove product quality
VERSIONS

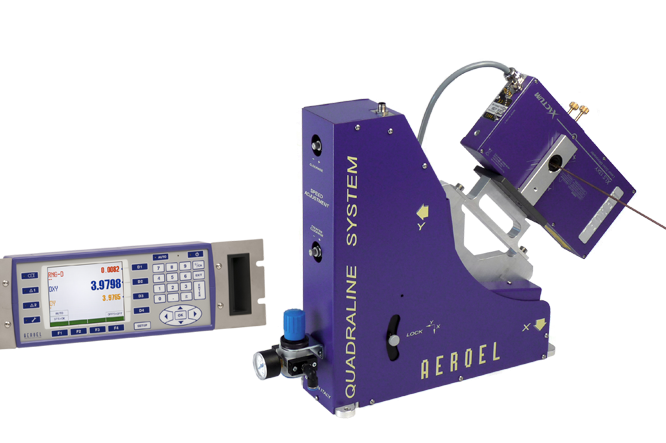

QUADRALINE.XY13

  • Measuring Field: 13 x 13 mm
  • Measurable dimensions: from 0.1 to 4 mm
  • Repeatability: ± 0.75 µm

quadraline_13xy

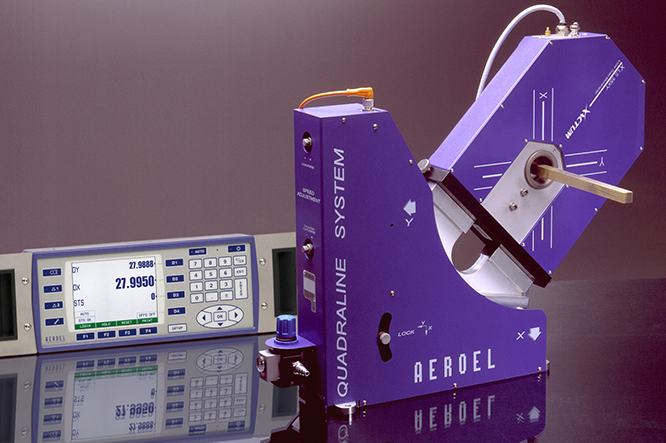

QUADRALINE.XY35

  • Measuring Field: 35 x 35 mm
  • Measurable dimensions: from 0.3 to 30 mm
  • Repeatability: ± 1.25 µm

quadraline_35XY_CE200
