Helium Charged - Vacuum Test

LEAK TESTING ON SCR-CNG TANK

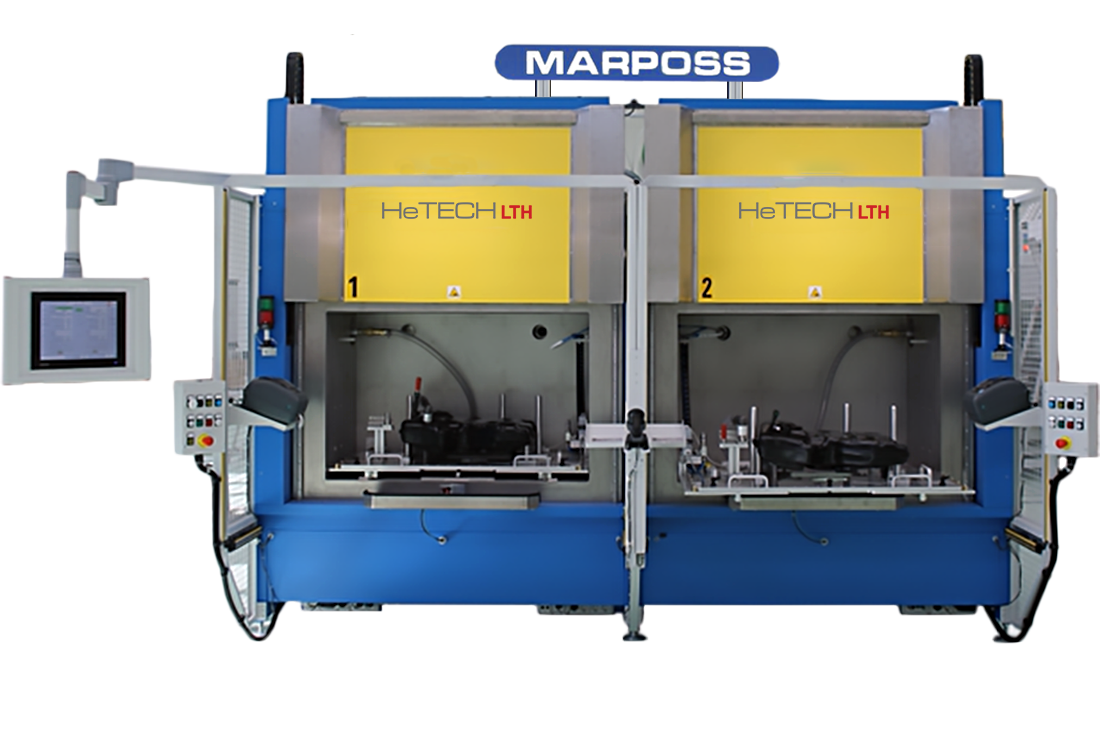

Leak Test machine for “Urea /SCR Tanks” provided with 2 vacuum chambers and integrated helium recovery system. Principle of measurement: Global test with mass-spectrometer.

Helium Charged - Vacuum Test
BENEFITS
  • Dedicated pumping system for the analysis - Total flow
  • Pumping system placed on a cart for easy maintenance
  • Dedicated Electric and Pneumatic cabinet
  • Ventilation and Sound proofing of the pumping system
  • Totally customizable HMI interface
  • Removable tooling
DESCRIPTION

The machine is provided with two vacuum chambers and two sliding lids automatically opened and closed, mounted on welded and painted steel frames covered with removable panels. Behind the chambers is placed the vacuum pumping system, housed on a wheeled support frame inside a soundproofed and ventilated cabin. The pumping system, as well as the leak detector, are shared between the chambers. The cabinets containing the electric switchboard and the analysis system are fixed to the pump cabin, as well as the pneumatic boards for the distribution of the air and the helium. HMI is made by a touch-screen colour monitor and one remote control box with the push-buttons and light signals for the operator. The equipment provides separate outlet ports for helium and air discharge and it is engineered to be connected to a helium recovery system which is integrated in the machine layout. The machine is manufactured with the requested colour required from the customer.

TECH SPECS

Productivity: 60 parts/h with n°1 part tested per chamber - Reject threshold: equal to or higher than 1,0 x E-4 mbar*l/s - Test Pressure (max): 400 mbar
