설명

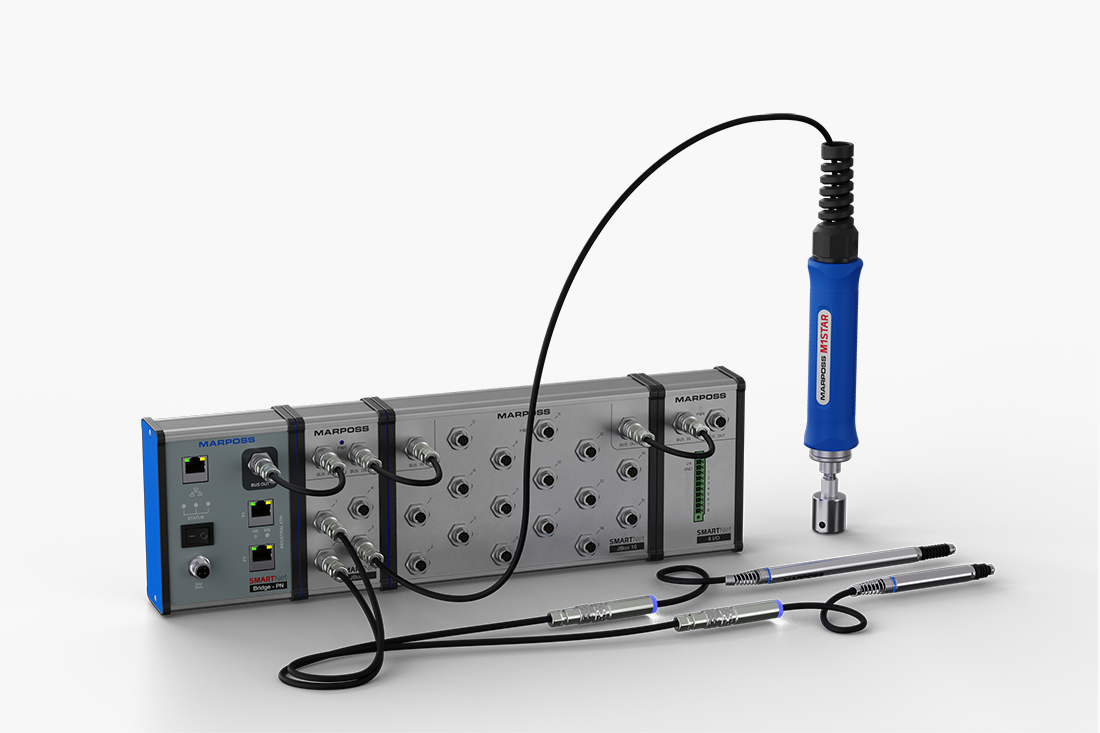

SMARTNet is the next-generation industrial connectivity system, designed for ultra-fast data acquisition (up to 30,000 synchronized measurements per second per sensor), automatic real-time configuration, and seamless integration with PCs and PLCs via Fieldbus (ProfiNet and others) and Ethernet. Its high-performance communication bus ensures exceptional speed and stability, reducing setup time and eliminating errors, even in complex networks.
The heart of the system is the Smart Connector—not just a connector, but a compact module that hosts signal digitalization and linearization electronics. It also has a bi-color LED, providing immediate visual feedback on sensor status, ensuring easy control and monitoring.
The new push-pull connector allows for fast, tool-free connections and disconnections, significantly simplifying installation and maintenance, even in harsh environments.
장점
-
• Sensors self-recognition guarantee an high ease of use
• Digitization and linearization across the entire measuring range make the Smart line sensors suitable for all types of applications
• The SMART connector integrates a two-colour LED allowing an immediate measurement feedback and guides the user in case of failure
• The high resolution allows accurate measurements
• Modularity and robustness make the network suitable for every application layout
• The SMART connector simplifies installation and maintainability
• Measurements always synchronized
• Compact and efficient mechanical integration and wiring.
• Extremely easy to interface with third-party systems (PLCs, software, etc.).
• Clean and consistent layout for easy maintenance and setup.
• Scalable network to cover both simple and complex applications.
기술 사양
-
• Up to 250 sensors connectable to a single network
• 360° visible LED for instant feedback.
• Sensor available in two versions: 20 cm cable and 2 m cable
• Available in Ethernet and Ethernet+Fieldbus versions.
• Up to 32.000 synchronized measurements per second for a each measuring point with 40 measuring points simultaneously connected, 15.000 with 100 connected sensors.
• Up to 1.5 million measurements per second on the communication bu
