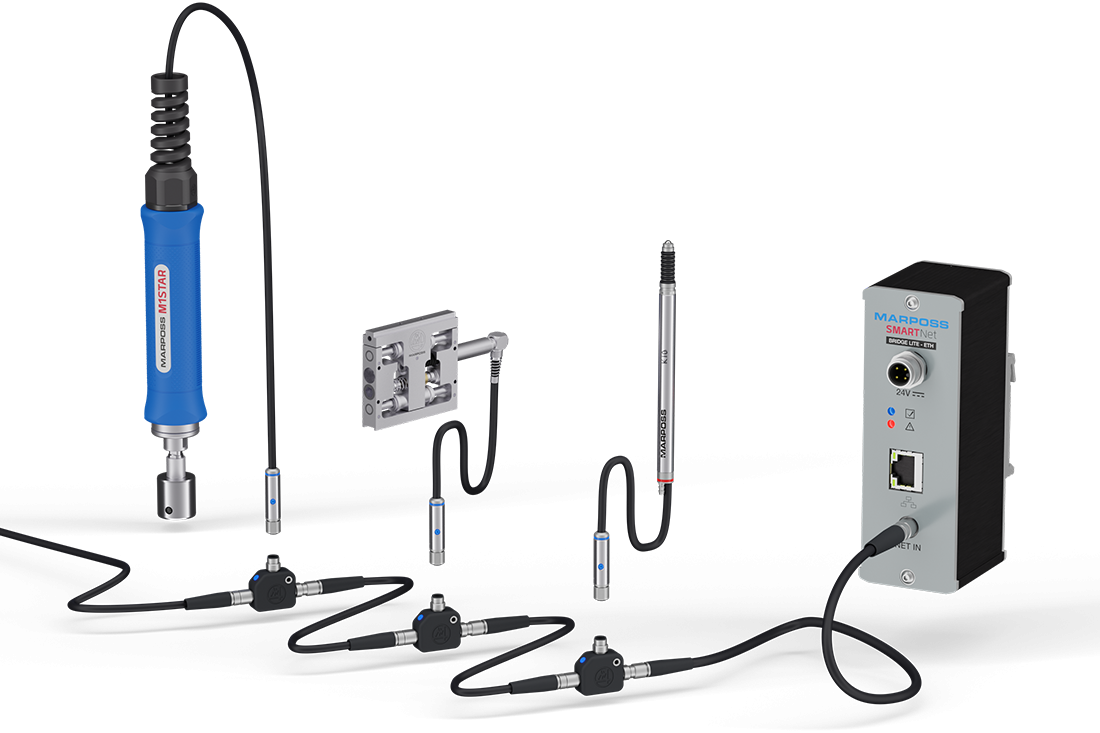

Modular Sensors Network

SMARTNET™

SmartNet is the new fast, flexible and modular measurement system that is automatically configured to facilitate the acquisition of measurements.

Pencil probes, plug gauges, measuring cells, QuickBlocks and any other Marposs sensor can now be supplied with the SMART connector to be integrated in the SmartNet.

Modular Sensors Network
描述

SMARTNet is the next-generation industrial connectivity system, designed for ultra-fast data acquisition (up to 30,000 synchronized measurements per second per sensor), automatic real-time configuration, and seamless integration with PCs and PLCs via Fieldbus (ProfiNet and others) and Ethernet. Its high-performance communication bus ensures exceptional speed and stability, reducing setup time and eliminating errors, even in complex networks.

The heart of the system is the Smart Connector—not just a connector, but a compact module that hosts signal digitalization and linearization electronics. It also has a bi-color LED, providing immediate visual feedback on sensor status, ensuring easy control and monitoring.

The new push-pull connector allows for fast, tool-free connections and disconnections, significantly simplifying installation and maintenance, even in harsh environments.

优势
  • Sensors self-recognition guarantee an high ease of use
    Digitization and linearization across the entire measuring range make the Smart line sensors suitable for all types of applications
    The SMART connector integrates a two-colour LED allowing an immediate measurement feedback and guides the user in case of failure
    The high resolution allows accurate measurements
    Modularity and robustness make the network suitable for every application layout
    The  SMART connector simplifies installation and maintainability
    Measurements always synchronized
    Compact and efficient mechanical integration and wiring.
    Extremely easy to interface with third-party systems (PLCs, software, etc.).
    Clean and consistent layout for easy maintenance and setup.
    Scalable network to cover both simple and complex applications.
技术规格
  • Up to 250 sensors connectable to a single network
    360° visible LED for instant feedback.
    Sensor available in two versions: 20 cm cable and 2 m cable
    Available in Ethernet and Ethernet+Fieldbus versions.
    Up to 32.000 synchronized measurements per second for a each measuring point with 40 measuring points simultaneously connected, 15.000 with 100 connected sensors.
    Up to 1.5 million measurements per second on the communication bu
下载

BROCHURES AND MANUALS

传单
英语 SMARTNET: (13.00MB)
中文 (Simplified Chinese) SMARTNET: (13.06MB)

DRAWINGS

- 图纸 [STEP] -
- BRIDGE LITE (2.78MB)
- END LINE CONNECTOR (220.27kB)
- T-CONNECTOR (1.03MB)
