설명

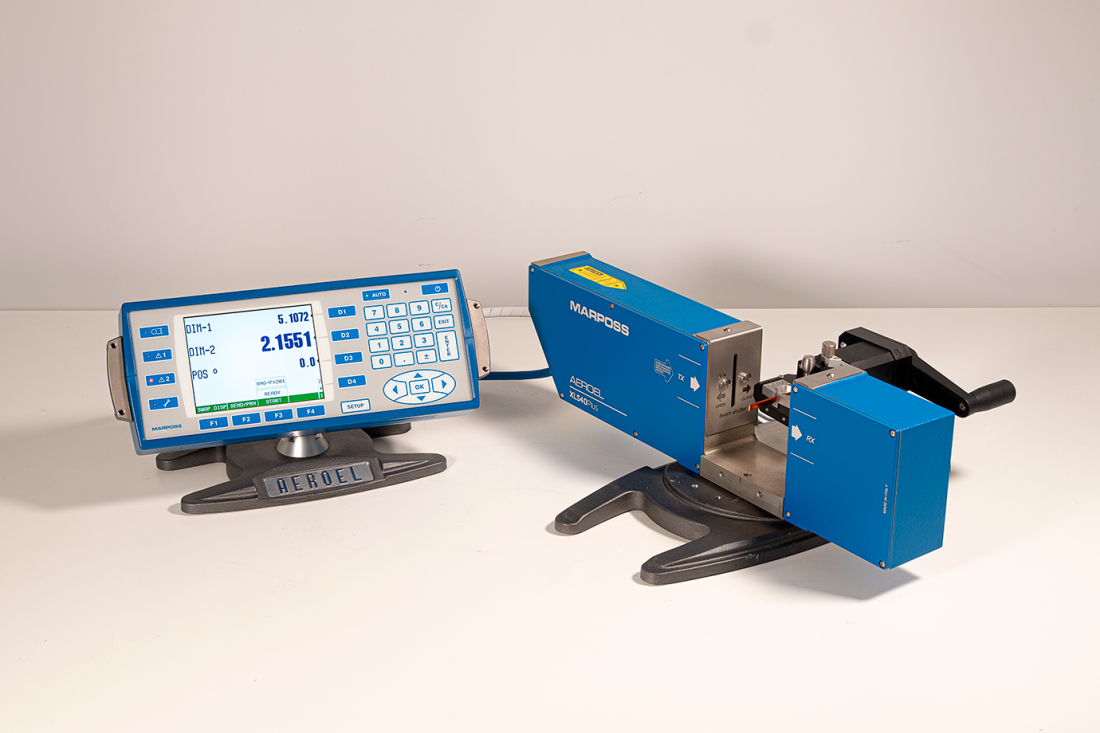

SUPER- WIRELAB.X40 is a high-performance tabletop laser micrometer to check off-line the rectangular wires.
• Repeatable and objective results not affected by operator’s skill.
• Contactless measurement.
• Highly flexible: different products can be measured without system re-mastering.
• It can also be used to measure diameter and ovality of round wire.
• Rugged construction suitable to be used in workshop environment.
장점
Easy to use
The software has been designed to be extremely user friendly and very flexible.
Quick tolerance check
Measured dimensions can be compared with a pre-set nominal value and a tolerance range: colours will immediately display the tolerance status of the part.
Part library for easy programming
Up to 5000 control sets (tolerance limits, measuring mode, etc.) can be stored in a “part library”.
No measuring drift due to changing room temperature!
The NO-VAR (NO-VARiation) technology allows to get simply perfect measurements even in non-thermally controlled environments, programming the thermal expansion coefficient of different materials.
기술 사양
| Measuring Range |
Rectangular Wire * 0.5x1 – 6x14 mm
Round Wire * 1.5 – 6 mm |
| Repeatability |
Rectangular Wire * Under definition
Round Wire (T=1s, ±2) ± 0.07 μm |
| Linearity |
Rectangular Wire * Under definition
Round Wire * ± 0.5 μm |
| Scanning Rate |
1500 Hz |
| System Weight |
11,5 Kg |
