VISI QUICK™

FLEXIBLE MEASURING SYSTEM FOR GLASS CONTAINERS INSPECTION

Bild vergrößern

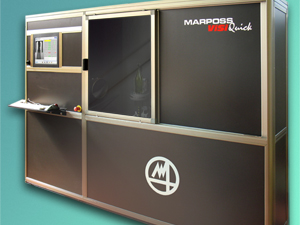

Visi Quick^TM is a flexible measuring machine, using a high-resolution camera, suitable for dimensional and geometric inspection of a large variety of glass containers having different size, shape and colour.

The container to be measured is back-illuminated by a collimated light source. Its image is taken by a telecentric lens and focused on the high-resolution CCD matrix sensor of the camera.

Visi Quick^TM is available either in stand-alone configuration, with manual or automatic loading/unloading, or to be integrated in the production line for sample checking.

It can measure all the standard characteristics of glass containers, such as:

• total and partial heights
• external body dimensions (diameters, sides and diagonals of non round containers) and shape (roundness, taper, straightness of the labelling area)
• lean/bent neck
• tilt
• finish parameters (e.g. diameters heights, mouth parallelism) on different finish types (cork, crown cork, screw finish)
• corkage inside diameter, roundness and taper (optional)
• weight (optional)
• push-up (optional)

Other parameters can be evaluated upon request.

The VisiQuick^TM software, installed in a powerful Industrial PC, provides a simple and intuitive user interface.
