Laser System for Through-feed, Multi-diameter Measuring and Grinder Regulation

GRINDLINE+

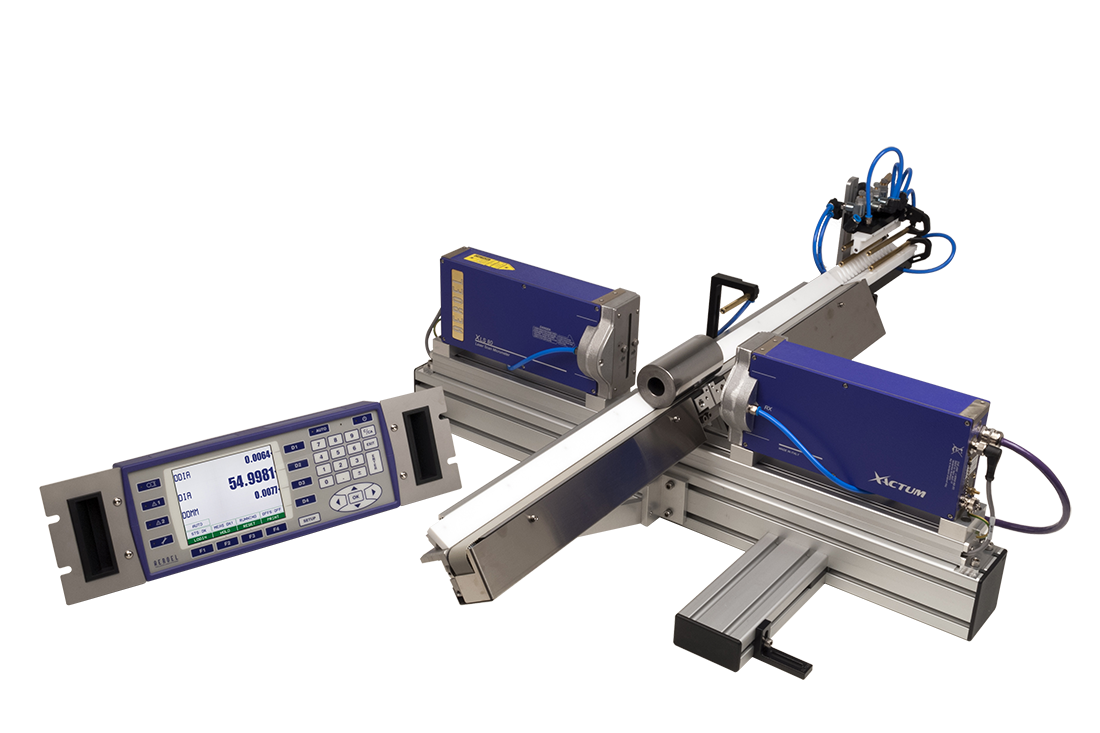

The Grindline+.X Laser System has been specially designed for on-line gauging of the outside diameter of products manufactured by plunge type centreless grinding machines, like electric motor shafts or any other part having several diameters to be checked.

Laser System for Through-feed, Multi-diameter Measuring and Grinder Regulation
DESCRIPTION

The main functions of the system are as follows:

  • through-feed measurement up to 10 diameters
  • tolerance checking and output alarms for part sorting
  • real-time grinder regulation
  • processing and printing of statistical reports
  • interface with remote computer
  • NO-VAR technology: no measuring drift due to changing room temperature

To know more read the article about Grindline+.X Laser System.

BENEFITS
  • Zero-defect production: the 100% inspection allows out-oftolerance parts to be detected and discarded, avoiding any risk of rejects or later complaints
  • Reduction of scrap: the real-time grinder regulation prevents machining out-of-tolerance pieces
  • Labour savings: the unsupervised automatic control makes lighter work for the grinder operating staff
  • Quality certification made easier: the on-line gauging makes random sample checks redundant and allows the printing of detailed reports to prove Product Quality and Process Capability
  • Excellent flexibility: thanks to its wide measuring range and to the exclusive data processing software, the system enables gauging a number of parts with different shape and dimensions without specific dedication
  • Through-feed capability: the non-contact operating principle enables 100% inspection without having to stop the component
  • High gauging speed: getting an excellent repeatability in a short measuring time makes the on-line application consistent with high production rates
  • High precision: a patented self-calibration device guarantees permanent gauge accuracy with no re-mastering required
  • Insensitive to ambient temperature changes: the selfcalibration device automatically compensates any drift due to room temperature changes, making the gauge ideal for use in the workshop
  • Turnkey solutions: Aeroel supplies a wide range of accessories for cleaning and moving the part, assuring a high overall system performance
  • Competitive price: the through-feed gauging doesn’t involve complicated and costly handling devices and one gauge can measure several diameters
  • Reliability and long life: the optical gauging avoids all wearing and adjusting problems associated with touch probes; the solid state laser source warrants long operational life
VERSIONS

GRINDLINE+.X40

  • Measuring Field: 40 mm
  • Measurable Diameters: from 0.06 to 38 mm
  • Repeatability: ± 0.1 µm

GRINDLINE+.X80

  • Measuring Field: 80 mm
  • Measurable Diameters: from 0.75 to 78 mm
  • Repeatability: ± 0.3 µm
