FIXTURES FOR AUTOMOTIVE GLASS INSPECTION
MODULAR AND RECONFIGURABLE SOLUTIONS

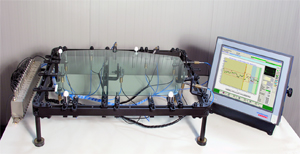

Marposs can provide modular and reconfigurable fixtures for the measurement of curved glass panels.
The reconfigurability feature makes modular systems particularly recommended for prototyping and whenever high variability of production is required.
The glass can be measured, either on the surface or on the edge, by means of digital pencil probes or, alternatively, analogue pencil probes and modular data acquisition system. The output signals of the pencil probes are elaborated and displayed by industrial PC, or by a commercial PC, with SPC quality control software and Glass Add-On, a software specifically developed for the measurement of automotive glass, including a "best-fit" algorithm that can be applied to the measured data for providing real time, reliable information about:
- good/reject glass condition
- glass shape errors
- glass symmetry errors
